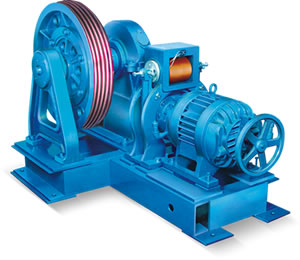

| MODEL : T-143 (8 Passenger Machine) |
|
| |
| SALIENT FUTURE |
 |
Mono block housing of graded cast iron. |
|
Compact dimensions and low weight. |
|
Integral mounting of electric drive(stator and rotor) on high speed shaft. |
|
Gear & Worm kit are supplied from GREAVES COTTON LTD. |
|
Break operating mechanism of electro magnetic type to operate on 11OV/220V DC. |
|
Load & Vibration are tested in factory. |
|
Ease of assembly and dismantling. |
|
Ease of maintenance at site. |
|
|
 |
|
| |
| SELECTION CHART FOR T-143 MACHINE |
| Sr. |
Capacity (No. of Passenger) |
Load k.g. |
Rated Speed m/s |
Roping |
Traction Sheave |
Motor Power KW |
Rated speed rpm |
| 1 |
8 |
550 |
0.67 |
1:1 |
550 |
4.5 |
1000 |
| 2 |
10 |
680 |
0.67 |
1:1 |
550 |
5.0 |
1000 |
| 3 |
12 |
800 |
0.33 |
2:1 |
550 |
6.5 |
1000 |
| PASSENGER LIFT (vvvf 1.00) |
| 1 |
8 |
560 |
1.00 |
1:1 |
550 |
4.5 |
1500 |
| 2 |
10 |
700 |
1.00 |
1:1 |
550 |
5.0 |
1500 |
| 3 |
12 |
850 |
0.50 |
2:1 |
550 |
6.5 |
1500 |
|
|
|
| |
| |
| MODEL : 16 B.T. (8 Passenger Machine) |
|
| |
| SALIENT FUTURE |
|
Demountable traction sheave. |
|
D.C. Break 11OV / 220V |
|
Improved steel frame base available in left and right hands. |
|
Dynamically balanced split brake pulley/coupling. |
|
Gear & Worm kit are supplied from GREAVES COTTON LTD. |
|
Load & Vibration are tested in factory. |
|
Ease of assembly and dismantling. |
|
Ease of maintenance at site. |
|
|
 |
|
| |
| SELECTION CHART FOR 16 B.T. MACHINE |
| Sr. |
Capacity (No. of Passenger) |
Load k.g. |
Rated Speed m/s |
Roping |
Traction Sheave |
Motor Power KW |
Rated speed rpm |
| 1 |
8 |
550 |
0.70 |
1:1 |
610 |
5 |
1500 |
| 2 |
10 |
680 |
0.70 |
1:1 |
610 |
5 |
1500 |
| 3 |
12 |
800 |
0.70 |
1:1 |
610 |
6.5 |
1500 |
| 4 |
12 |
800 |
0.35 |
2:1 |
610 |
6.5 |
1500 |
| PASSENGER LIFT (vvvf 1.00) |
| 1 |
8 |
550 |
1.05 |
1:1 |
610 |
5 |
1000 |
| 2 |
10 |
680 |
1.05 |
1:1 |
610 |
5 |
1000 |
| 3 |
12 |
800 |
1.05 |
1:1 |
610 |
6.5 |
1000 |
| 4 |
12 |
800 |
0.53 |
2:1 |
610 |
6.5 |
1000 |
|
|
|
| |
| MODEL : 11 B.T. (6 Passenger Machine) |
|
| |
|
| SALIENT FUTURE |
|
Demountable traction sheave. |
|
D.C. Break 11OV / 220V |
|
Improved steel frame base available in left and right hands. |
|
Dynamically balanced split brake pulley/coupling. |
|
Gear & Worm kit are supplied by GREAVES COTTON LTD. |
|
Load & Vibration are tested in factory. |
|
Ease of assembly and dismantling. |
|
Ease of maintenance at site. |
|
| |
| SELECTION CHART FOR 16 B.T. MACHINE |
| Sr. |
Capacity
(No. of assenger) |
Load k.g. |
Rated Speed m/s |
Max Travel M |
Roping |
Traction Sheave |
Motor Power KW |
Rated speed rpm |
| 1 |
6 |
420 |
0.65 |
16 |
1:1 |
510 |
3.7 |
1000 |
| 2 |
6 |
420 |
0.65 |
36 |
1:1 |
510 |
4.5 |
1000 |
| 3 |
6 |
420 |
0.70 |
36 |
1:1 |
550 |
4.5 |
1000 |
| PASSENGER LIFT (vvvf 1.00) |
| 1 |
6 |
420 |
1.00 |
36 |
1:1 |
510 |
5.0 |
1500 |
| 2 |
6 |
420 |
1.05 |
36 |
1:1 |
550 |
5.0 |
1500 |
|
|
|
| |
